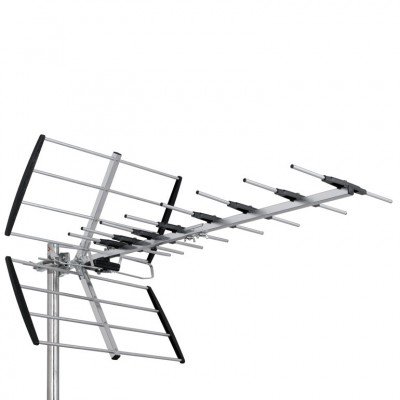

Performance certified to CAI Aerial Benchmark Standard 3. Suitable for all UK transmitters in medium signal areas or for loft mounting in strong signal areas.
Technical specifications
UHF Group W Elements: 12
Gain: 14 dBi
Front To Back Ratio: >20-26 dB
Beam Width Hor: +/-18 Degrees
Mechanical specifications
Weight: 1.25 kg
Dimensions: length x width 1010 x 555 mm
